Trailer növləri və ölçüləri

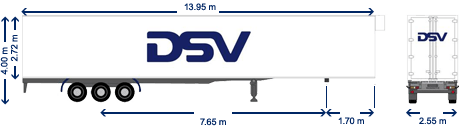

Box trailer

A box trailer is one of the most common trailers in the road transport industry. We typically use this type of trailer for transporting high-value cargo or garments on hangers.

Dimensions and capacity may vary depending on manufacture and production year.

Tare weight 8,600 kg
Payload capacity 31,400 kg
Cubic capacity 90 m3
Length 13.62 m
Width 2.46 m
Height 2.70 m
Door opening width 2.46 m
Door opening height 2.70 m



Curtain trailers

A curtain trailer is similar to a box trailer, except that the sides are movable curtains that give easy access to the cargo. And almost all of our curtain trailers can be transported on railway carriages. We use curtain trailers for most shipments.

Dimensions and capacity may vary depending on manufacture and production year.

Tare weight 7,200 kg
Payload capacity 32,800 kg
Cubic capacity 91 m3
Length 13.62 m
Width 2.48 m
Height 2.70 m
Door opening width 2.45 m
Door opening height 2.67 m
Side opening height 2.65 m



Mega trailers

A mega trailer has movable curtains like a curtain trailer. Most of our mega trailers have a height of 3 m and raisable top cover, making the trailer suitable for your large volumes and cargo above a certain height.

Dimensions and capacity may vary depending on manufacture and production year.

Tare weight 7,200 kg
Payload capacity 32,800 kg
Cubic capacity 100 m3
Length 13.62 m
Width 2.48 m
Height 2.94 m
Door opening width 2.45 m
Door opening height 2.90 m
Side opening height 2.87 m



Open trailers

For special transports and out-of-gauge we use open trailers. We have open trailers both with and without aluminium side boards.

Dimensions and capacity may vary depending on manufacture and production year.

Tare weight 6,500 kg
Payload capacity 31,900 kg
Cubic capacity
Length 13.62 m
Width 2.48 m
Height
Door opening width
Door opening height
Side opening height



Reefer trailers

For perishable cargo, such as fruit and vegetables, we use reefer trailers, which are designed to maintain a specific temperature to keep the cargo fresh on arrival.

Depending on manufacture and production year, the dimensions and capacity of reefer trailers may vary more than other trailer types.

Tare weight 9,000 kg
Payload capacity 31,000 kg
Cubic capacity 85 m3
Length 13.31 m
Width 2.48 m
Height 2.60 m
Door opening width 2.46 m
Door opening height 2.60 m
Side opening height



Tarpaulin trailers

The sides boards of our tarpaulin trailers are made of aluminium, which makes it easier to fasten the goods. Securing goods is especially important when carrying your dangerous goods. And our tarpaulin trailers are not only safe, they are also approved for TIR (International Road Transports).

Dimensions and capacity may vary depending on manufacture and production year.

Tare weight 7,200 kg
Payload capacity 32,300 kg
Cubic capacity 90 m3
Length 13.62 m
Width 2.48 m
Height 2.67 m
Door opening width 2.46 m
Door opening height 2.65 m
Side opening height 2.65 m
